Description
LEDs:60 LED/Metre
Beam ANGLE: 120o
Input Voltage: DC 12V
LIGHT SOURCE: SMD 5050
Length: 5M
Width: 10mm

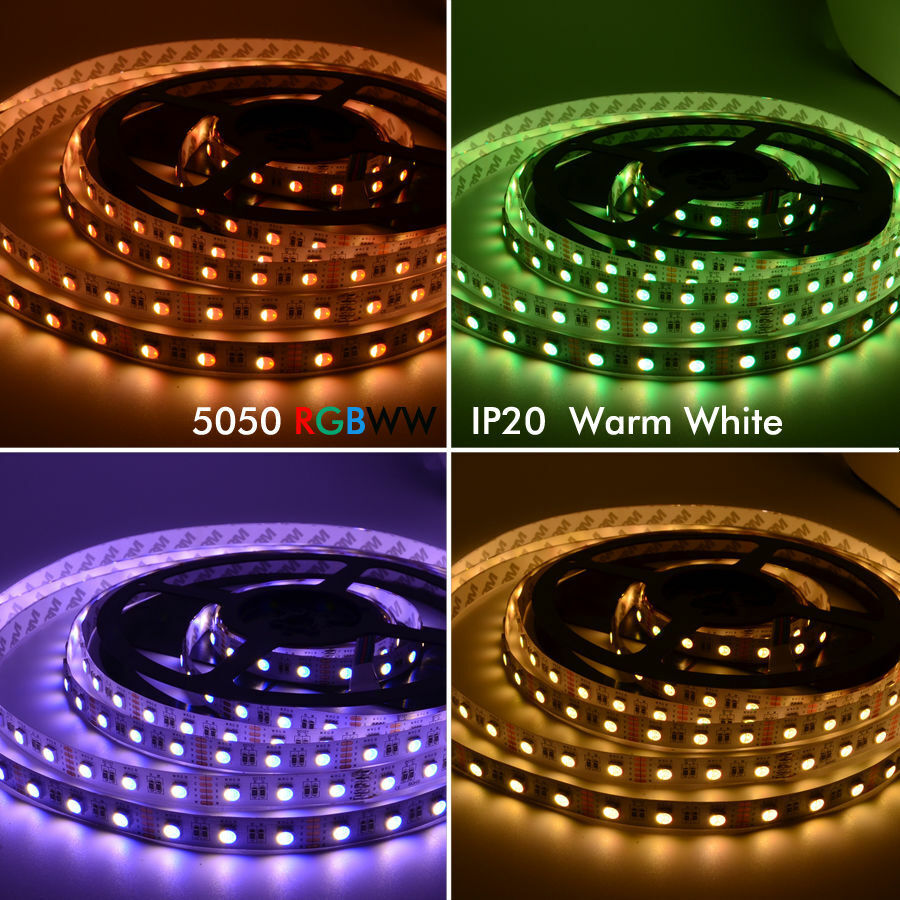

Colour: RGBWW
* 300 LEDs / Roll, 60 LEDs / Meter.
* LED type: SMD5050.

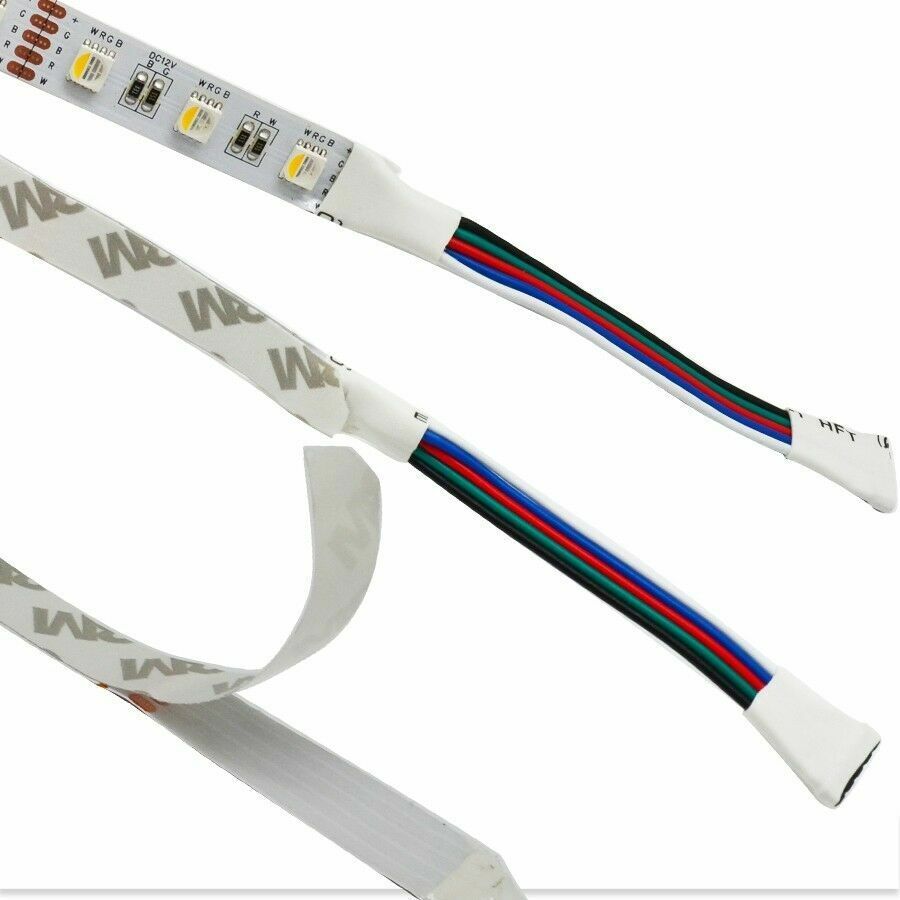

* Color: RGBWW Multi colour 5PIN wire.
* View angle: 120°.
* Working input Voltage: DC 12V.
* Max Working Current: 1A / Meter.
* Long life span: >50,000 hours.
* Working Tempreture: -25~60°.
* Max Output power: 60W/ 5 Meter.
* Luminous Flux: 800~900 Lumens/ Meter.

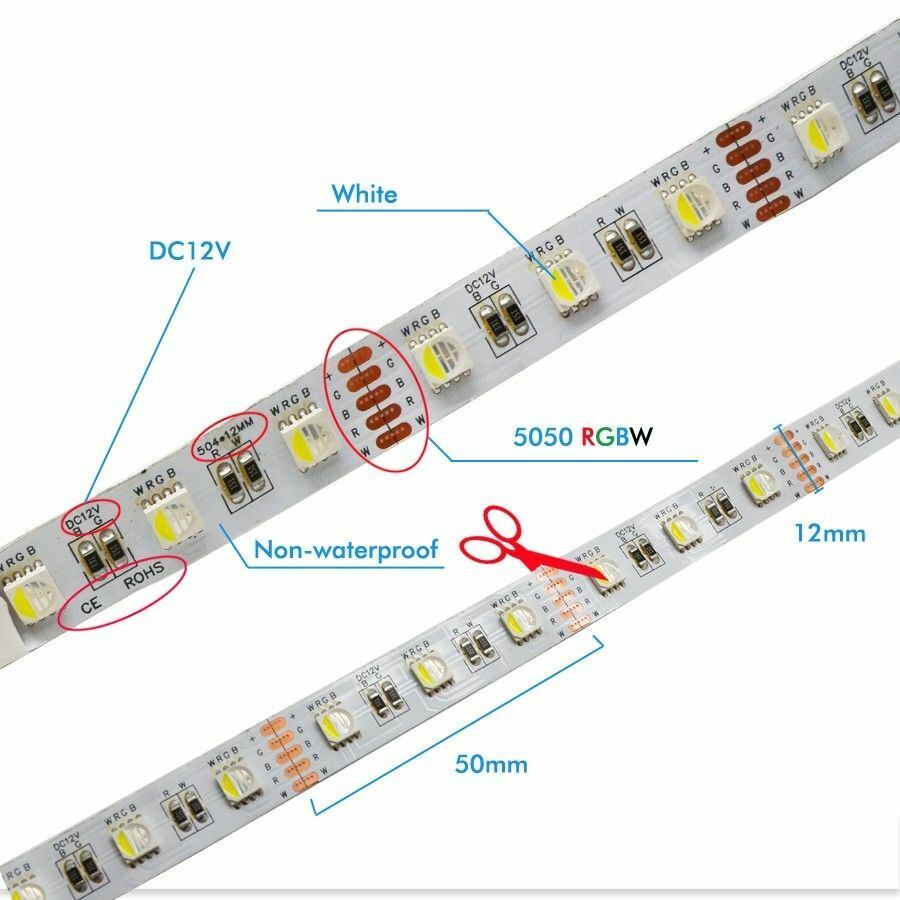

* Can be cut per unit (3 LED).
Instruction for setting up the lights:
* Please note that this is a 12V DC product, it won't work on 12V AC power source. Voltage higher than 12V might cause the remote control stop functioning.
Attention

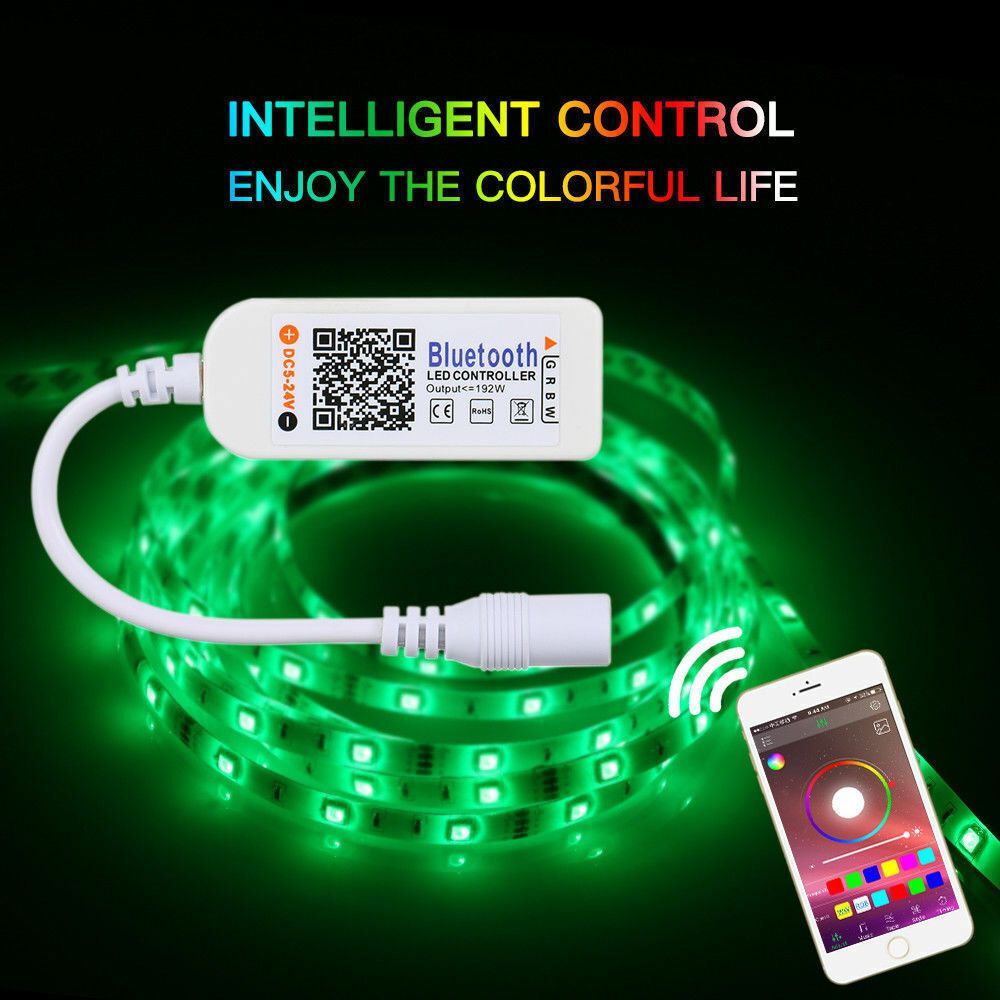

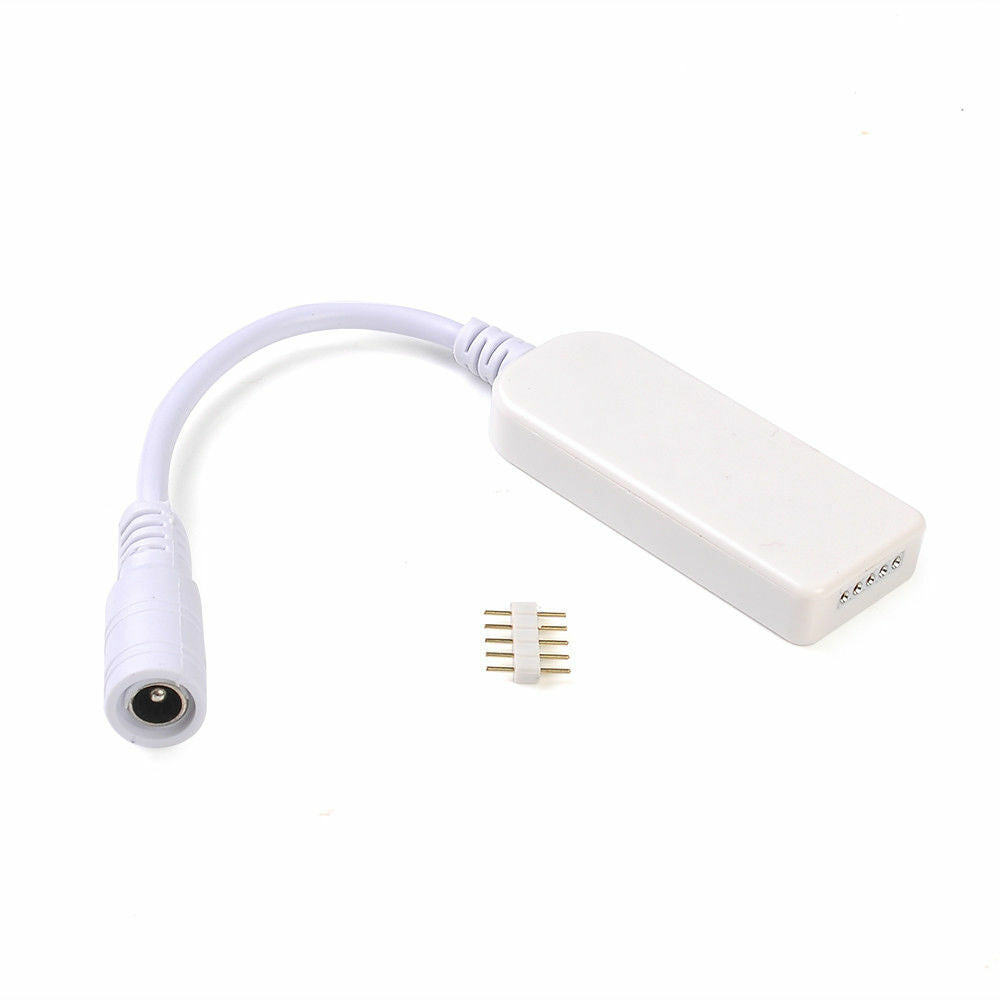

1.Please check that the red triangle mark of the white receiver need to match the Black/White wire of the strip light
2.Please make sure you are using a 12V DC power source, the light won't work on 12V AC power source.
3.If the strip light connected correctly and does not light up it could means the positive and negative pole that connects with the white receiver is reversed.
